Multi-colour 3D printing has clearly crossed a threshold over the past couple of years. What was once experimental or niche is now firmly mainstream, and it is no longer limited to novelty pieces or display models. With AMS-style filament switching, tool changers, and multi-nozzle setups all now genuinely accessible, anyone running a modern printer can produce parts in four, eight, or more colours within a single job — something that would have been impractical or prohibitively complex not long ago.
The reality on the ground is more nuanced than the marketing suggests. Despite the accessibility of the technology, a large proportion of users are not getting real value from it — not through any lack of understanding of how the feature works, but through how it is being applied. Multi-colour printing is often used in ways that increase print time, waste material, and add complexity without delivering meaningful benefit to the finished part. The capability itself is not the issue. The decision-making around when and how to use it is. This revised version goes considerably deeper into the actual mechanics behind why that waste happens, and pulls in the specific real-world numbers and the newer hardware architectures now attempting to solve the problem properly.
What multi-colour printing actually is, and isn’t
At a technical level, multi-material printing simply means switching materials or colours during a print to create variation in the finished object. In FDM, this usually happens through one of three architectures, each with its own genuinely different trade-off profile.
Single-nozzle systems with filament switching — the AMS-style approach that covers the overwhelming majority of consumer multi-colour printing today, including the setup on this desk — feed different filaments through one shared melt zone, one at a time. Dual or multi-nozzle systems use genuinely separate hotends for different materials, which the Vortek H2C post covers in detail from the swap-time angle. Full tool changer and independent-head systems — the Sovol M1D, the InfiMech MX Pro, the LightMake L4, and the Creality SparkX i8 — all take this further still, each attempting to shrink or eliminate the shared filament path that causes the waste problem entirely.

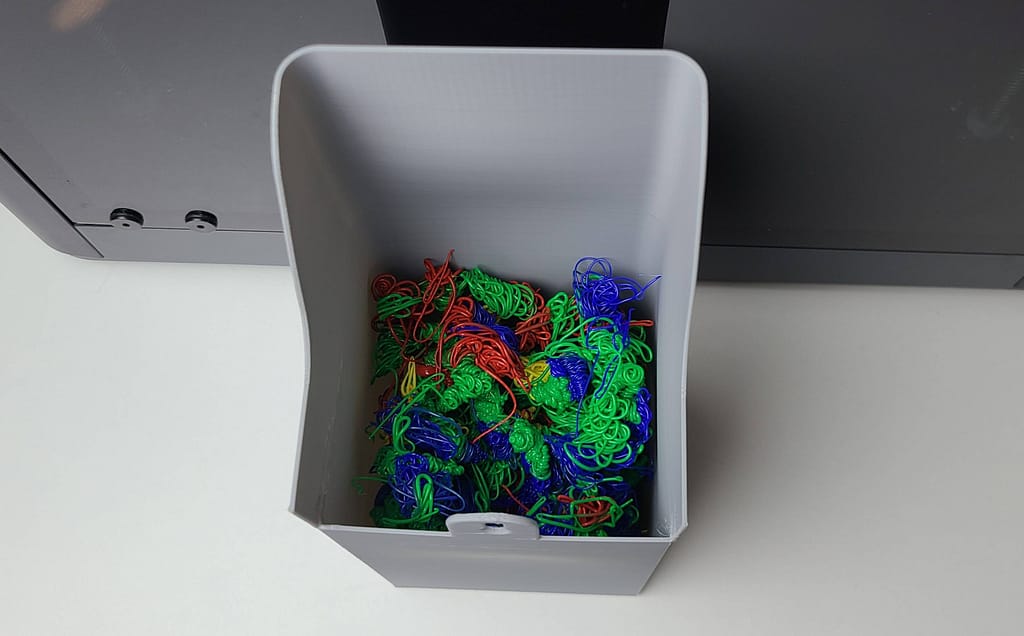

The variable that matters most in real-world use, regardless of which architecture is involved, is material waste and time overhead. Single-nozzle systems, which is what most people are actually using, must purge filament between colour changes — this is not optional, it is required to prevent contamination in the melt zone, exactly as covered in the hidden workflow cost post. And the impact is not trivial: print times increase significantly, filament usage increases sharply, and on the wrong model, waste can genuinely exceed the weight of the printed part itself. That is the part most people underestimate before they have actually experienced it on a genuinely complex multi-colour job.
The big problem: waste, and why it matters more than you think
Multi-colour printing can be incredibly wasteful, and it is worth being blunt about that rather than softening it. Real-world examples show situations where a 28g part produces over 100g of purge waste — the purge tower alone outweighing the actual model by a factor of three or four. This lines up exactly with what you will see in practice on a genuinely complex, high-swap-count print.
This is not purely a material cost issue. It touches three genuinely distinct things at once: time, since every purge cycle adds directly to total print duration and the workflow cost post‘s dragon benchmark showed a single-nozzle system taking nearly fifty hours for a job that a well-designed dedicated architecture completes in under fifteen; reliability, since more colour changes means more mechanical events that can go wrong, and each purge cycle is a genuine failure point in its own right; and environmental impact, since there is a growing push toward recycling and waste reduction in 3D printing generally that is still nowhere near solved at the hobby level. Using multi-colour properly, then, is not simply an optimisation exercise. It is a discipline.
Where multi-colour printing actually makes sense
This is where most people get it wrong, because the instinct is to treat colour purely as decoration. The genuine value lies in functional separation — using colour to communicate something, rather than simply to look impressive.
Labels and readability
This is the strongest use case, full stop. Panel labels, switch indicators, measurement markings, and tool identifiers all benefit from being printed directly into the part in a contrasting colour rather than added afterward through stickers, paint, or engraving. The result is permanent, clean, and needs zero post-processing. Critically, this application typically involves minimal colour changes per layer, which means minimal waste — the use case where multi-colour printing’s actual cost structure aligns best with the benefit it delivers.
UI and interface parts
Control panels, knobs with indicator markings, and enclosures with legends are all places multi-colour printing genuinely earns its overhead — replacing laser etching, vinyl overlays, or manual finishing with a single integrated print step.
Functional segmentation
This one is genuinely underrated. Using colour to indicate assembly orientation, part grouping, load zones, or safety indicators is a functional application rather than an aesthetic one — it is information encoded directly into the geometry, and it survives handling, wear, and time in a way a printed label or a sticker never will.
Branding, done carefully
Logos, accents, and product-style finishes are a legitimate use case, but only when colour changes are genuinely limited and the geometry supports efficient transitions rather than fighting against them. Otherwise this becomes expensive very fast, and the discipline covered throughout this post applies here just as much as anywhere else.
Where it is a waste of time
Full-body colour prints
Printing a model that changes colour constantly across every layer is the worst-case scenario for a single-nozzle system: maximum purge, maximum time, maximum failure risk. It looks impressive on Instagram and makes very little practical sense on the actual print bed, exactly the pattern the real-world dragon waste numbers above illustrate.
“Because I can” printing
This is the genuine trap. Adding colour with no functional benefit, purely because the AMS is sitting there loaded and available, is how a print’s time and material cost quietly doubles for absolutely no gain in the finished result.
The hardware reality: where the industry is actually heading
The industry clearly knows this is a genuine problem, and the past year in particular has seen a real cluster of new architectures attempting to solve it properly rather than incrementally. Dual-nozzle systems reduce purge waste significantly by keeping different materials in genuinely separate melt zones. Tool changers eliminate purge almost entirely in some designs by swapping the entire hotend rather than flushing a shared one. And a genuinely new wave of designs — the SparkX i8’s QuarTeks mechanism keeping four filament channels separate until just 1.7mm from the nozzle tip, the LightMake L4’s four fully independent print heads, the Sovol M1D’s IDEX-plus-toolchanger hybrid — are all specifically trying to reduce printer poop closer to zero rather than merely reducing it.
Even so, the dominant consumer setup right now, by a wide margin, remains single-nozzle filament switching — the AMS on this desk included. Which means the underlying problem this whole post is about has not actually gone away for most people printing multi-colour today, whatever the newest Kickstarter promises. Understanding the discipline below matters regardless of which hardware generation eventually becomes the mainstream default.
Practical strategy: how I actually use multi-colour
Rule 1: minimise colour transitions per layer. Less switching means less waste, in a directly proportional relationship — this is the single highest-leverage decision available before touching any other setting.
Rule 2: use colour for information, not decoration. Labels beat aesthetics every time on the actual cost-benefit calculation, even if the purely decorative version photographs better.
Rule 3: combine colour zones vertically where possible. Grouping a colour into a contiguous height range rather than scattering it across many layers avoids the constant within-layer switching that drives the worst waste numbers.
Rule 4: accept that some prints should stay single colour. Not everything needs multi-colour, and the discipline of recognising when a model does not benefit from it is exactly what separates efficient multi-colour use from the “because I can” trap above.
A fifth rule worth adding to the original four, and one that did not exist as a practical option when this post was first written: consider whether multi-part printing achieves the same visual result with none of the purge cost at all. The multi-part printing post and the PETG interface post both cover approaches that sidestep the single-nozzle waste problem entirely by separating colours into individually printed parts rather than swapping filament mid-print. For any model with clean geometric colour boundaries — a figure with a distinct jacket and body, a sign with a background and raised text — printing each colour as its own single-material part and assembling afterward frequently beats the AMS outright on both waste and total time, and it is worth genuinely considering as the default alternative before reaching for a multi-colour AMS job on principle.
The reality check
Multi-colour printing is not a gimmick any more. It is powerful, useful, and increasingly standard. But it is not free. There is always a trade-off between time, material, and complexity, and the people getting real value from it are not printing rainbow dragons purely to show off. They are printing better tools, better parts, and better systems — and doing it efficiently, with the specific discipline covered above rather than by default.
Final thoughts
Multi-colour 3D printing is no longer something to dismiss as a novelty feature, but it also isn’t something to apply indiscriminately. It sits in a space where it can either add genuine, practical value or quietly erode efficiency depending on how it is used. Every colour change carries a real cost in time, material, and complexity, and those costs compound quickly if the approach is not deliberate. The key is to treat multi-colour as a functional tool rather than a visual upgrade — used to improve readability, usability, or part function, it can replace additional processes and produce cleaner, more professional results straight off the bed. Used without purpose, it tends to do the opposite, increasing print time and waste without improving the outcome. The difference comes down to intent and control. Used properly, it becomes part of an efficient workflow. Used casually, it becomes an expensive habit — and increasingly, as the hardware landscape covered above continues to evolve, a habit with genuinely better and worse tools available to indulge it.
